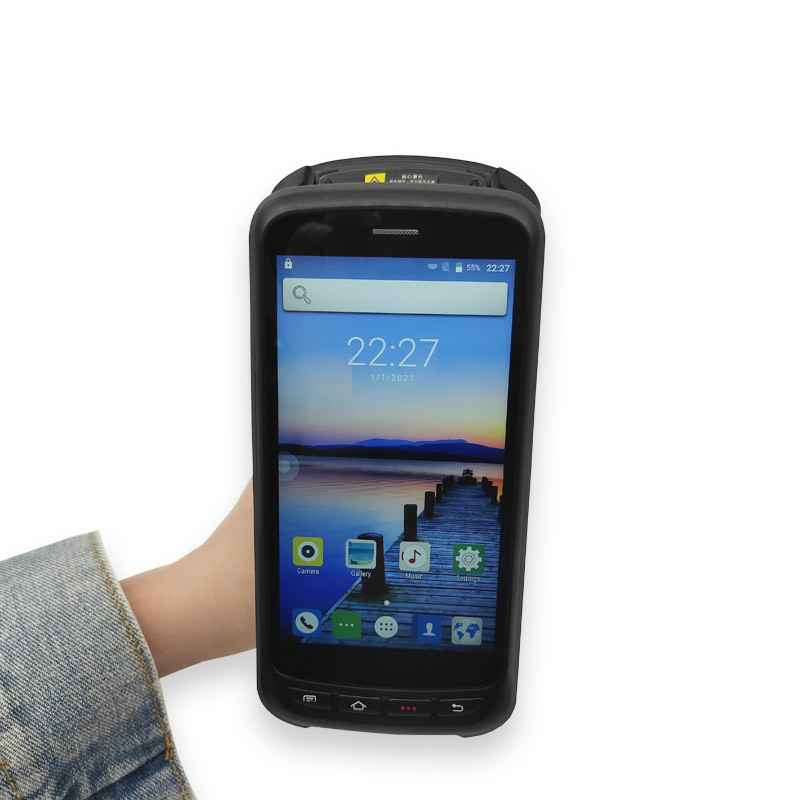

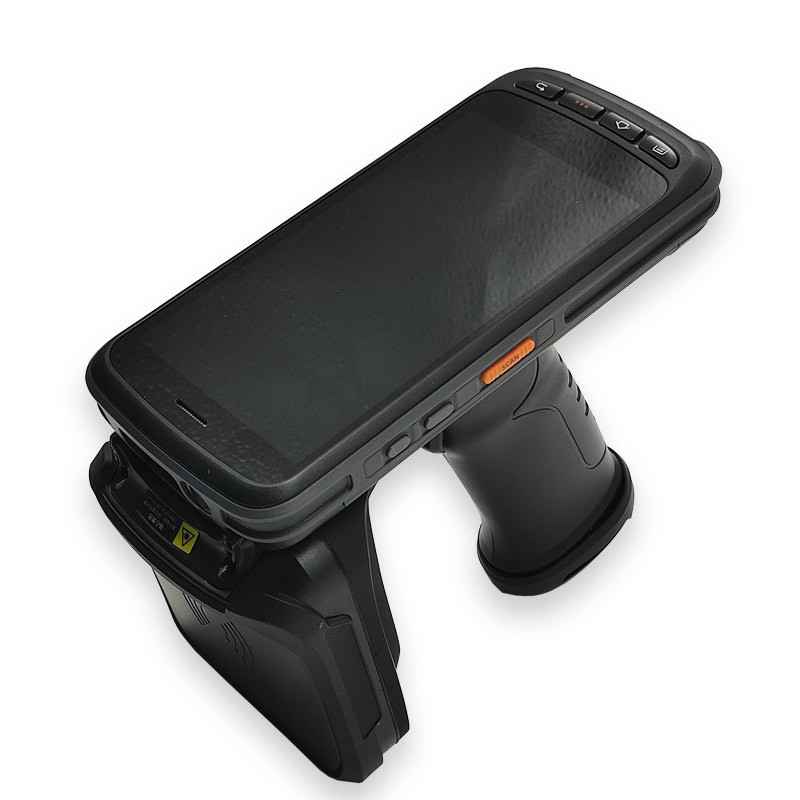

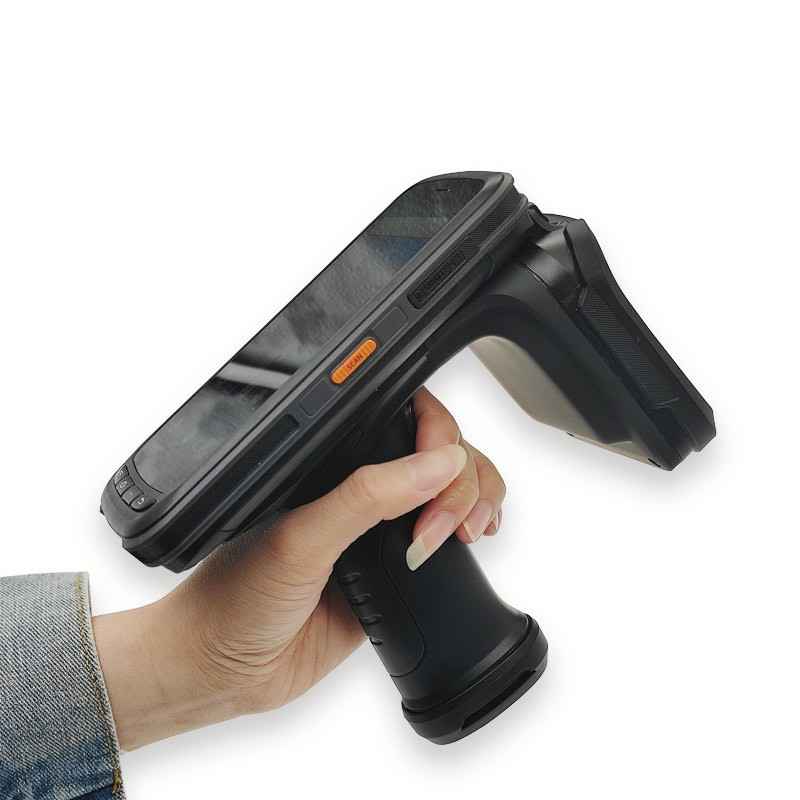

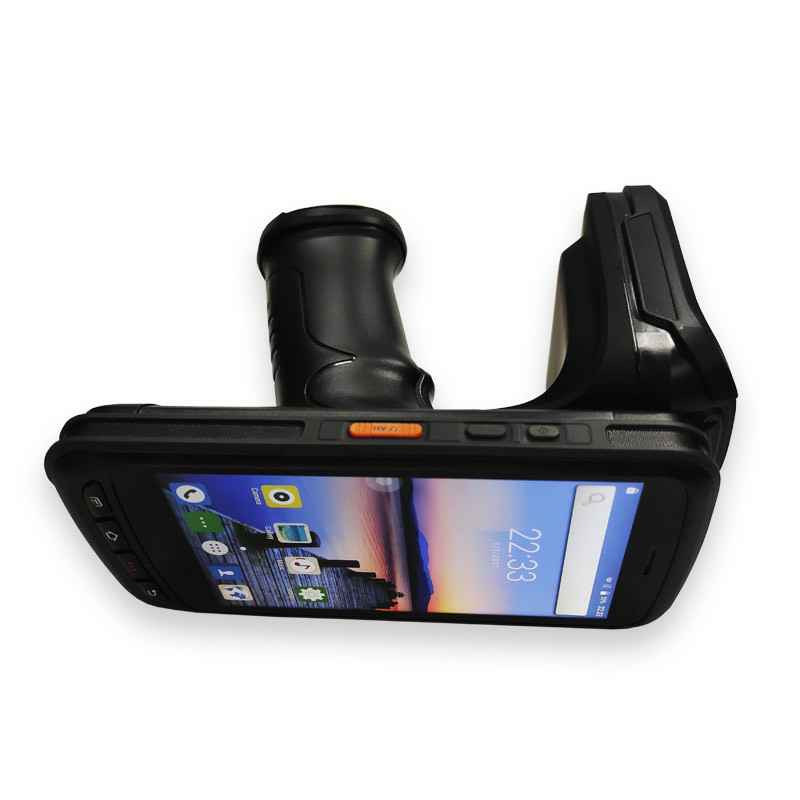

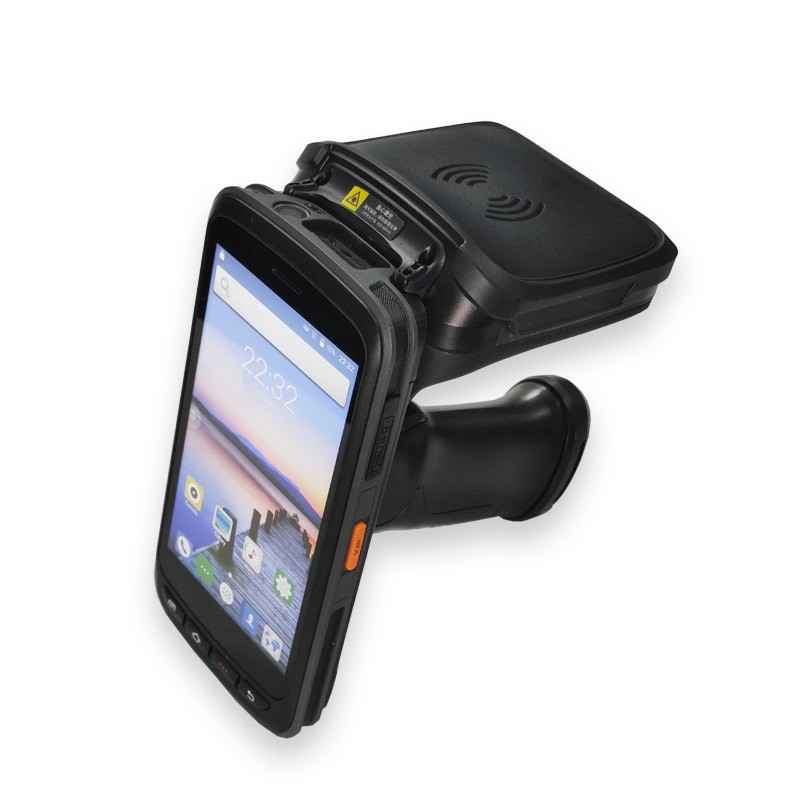

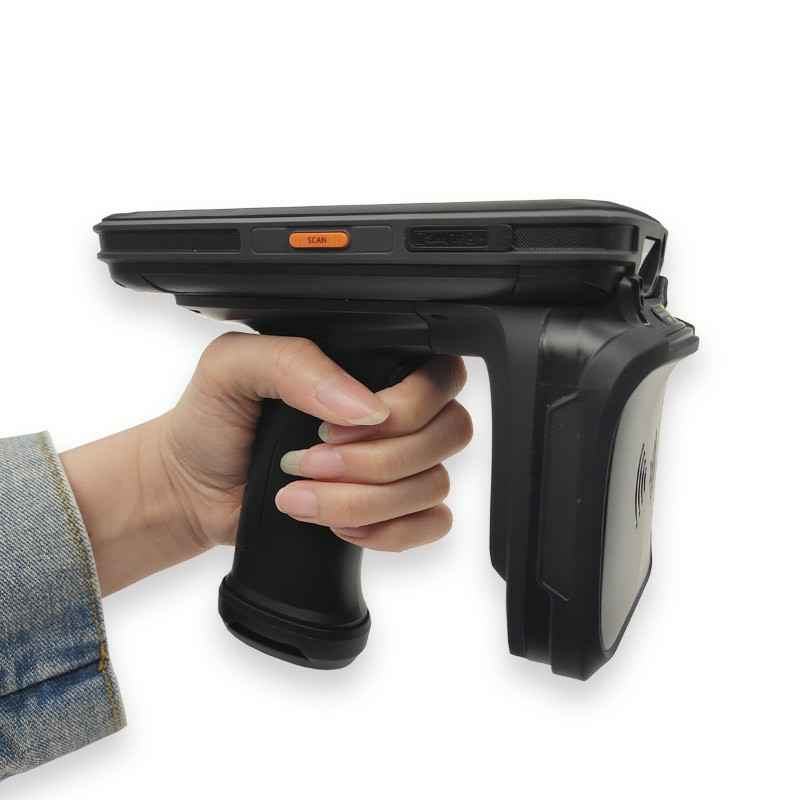

C72 UHF smart handheld terminal

C72 incorporates powerful UHF ultra-high frequency reading and writing functions, with better sensitivity, which helps to achieve more accurate and faster data collection. Using Android 6.0 operating system, equipped with a 1.3GHz quad-core processor, with long battery life, C72 is widely used in asset management, clothing inventory, vehicle management, high-speed toll collection, warehouse management, financial management and other fields.

Technical Parameters

Physical parameter

Overall size 164.2mm x 80.0mm x 24.3mm

Machine weight 654 grams

Display 5.2 inches, IPS FHD 1920x1080 resolution

Touch screen Corning Gorilla Glass, supports multi-touch, supports operation with gloves or wet hands

Battery capacity: rechargeable lithium polymer battery 8000mAh

Standby time>500 hours

Working time>12 hours (depending on usage and network environment)

Charging time 3-4 hours (use standard power adapter and data cable)

Expansion socket 1 SIM card slot, one card slot, choose either SIM or TF

Communication interface USB 2.0 Type-C, OTG

Audio speakers, 2 microphones

Keyboard 4 main keyboards, 1 power key, 2 scan keys, 1 multi-function key

Sensor Gravity sensor, light sensor, distance sensor, vibration motor

Performance parameter

CPU Cortex-A53 1.3GHz quad-core

RAM 2GB

ROM 16GB

Expanded memory Micro SD (TF) card can be expanded to 32GB

Development environment

Operating system Android 6.0

SDK becomes the terminal software development kit

Development language Java

Development tools Eclipse / Android Studio

Use environment

Working temperature -20°C to 50°C

Storage temperature -40°C to 70°C

Environmental humidity 5%RH-95%RH (non-condensing)

Drop specifications Within the operating temperature range, all 6 sides can withstand the impact of multiple drops from a height of 1.5 meters to the concrete floor

Rolling test 1000 times of continuous rolling 0.5 meters, 6 contact surfaces still run stably after rolling, reaching IEC rolling specifications

Protection level

Static Protection

To

Host IP64, meeting IEC sealing standards

±8KV air discharge, ±4KV contact discharge

Data communication

WLAN supports IEEE802.11 a/b/g/n protocol, (2.4G/5G dual frequency); built-in antenna

WWAN 2G: 900/1800MHz

3G: 900/1900/2000/2100MHz

4G: TDD-LTE: B38, B39, B40, B41

FDD-LTE: B1, B3, B5

Bluetooth Bluetooth 4.0, BLE

GPS integrated GPS, GLONASS and Beidou; built-in antenna, support AGPS

RFID UHF

Working frequency 860—960MHz Frequency band customized according to needs

China frequency 920-925MHz

U.S. frequency 902-928MHz

European frequency 865-868MHz (ETSI EN 302 208)

Other frequencies Other multi-country frequency standards (customizable)

Protocol standard EPC C1 GEN2/ISO18000-6C

Antenna parameters Linear polarization antenna (1.8dBi) / Circular polarization antenna (4dBi)

Function 1W (30dBm, support +5dBm ~ +30dBm adjustment)

Card reading distance> 6 meters (linear polarization);> 10 meters (circular polarization, outdoor open environment);

＞20m (circular polarization, indoor)

Group reading speed ＞200 tags per second (circular polarization)

Barcode collection (optional)

One-dimensional scanning engine Honeywell N4313

Support one-dimensional barcode types UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

Two-dimensional scanning engine PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal ( KIX) etc.



Iris recognition (optional)

Recognition time <150ms

Working distance 20-40cm

FAR 1/10000000
